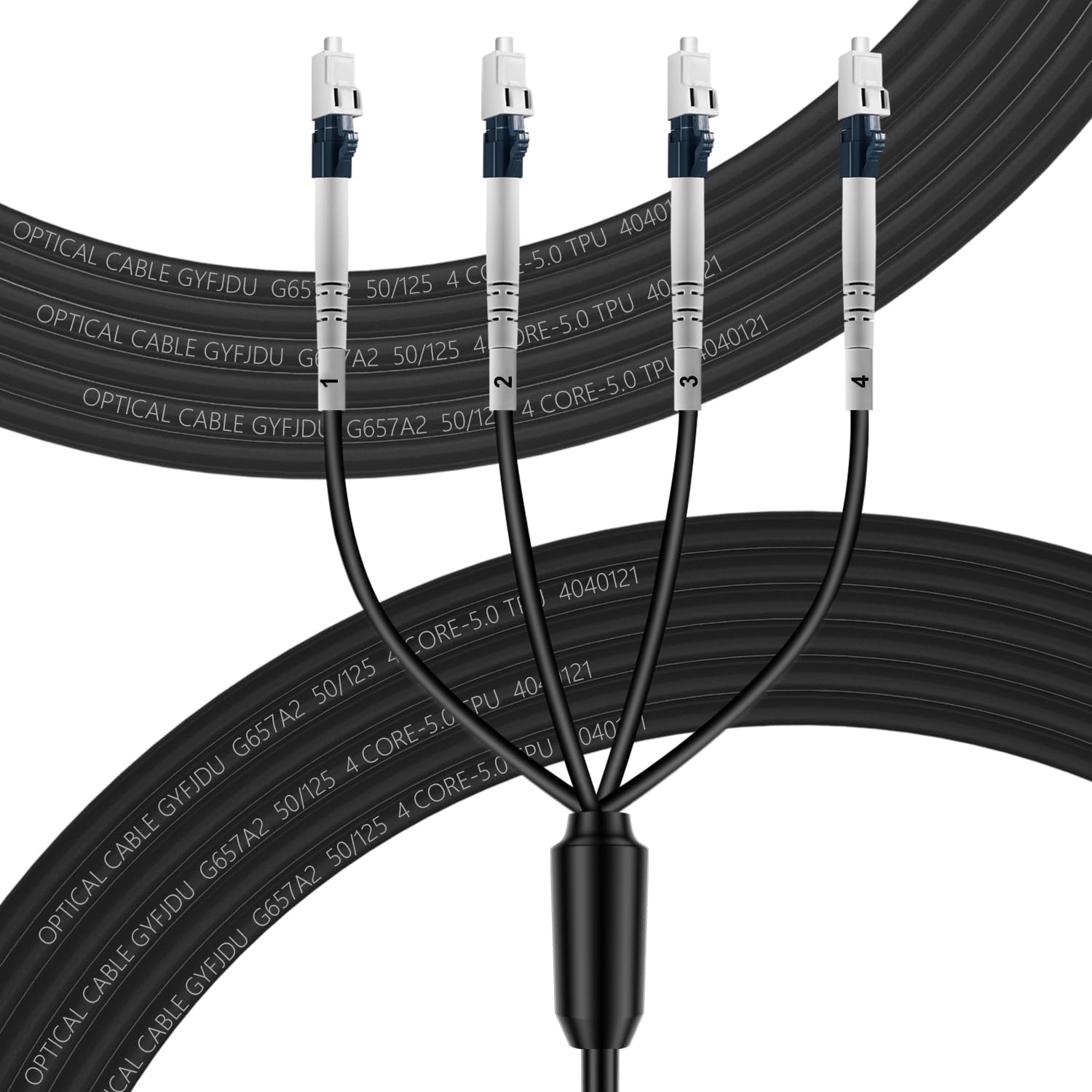

RiteAV - 4 Core Industrial TPU LC to LC Outdoor Armored Fiber Optic Cable, 4 Strands OS2 Single Mode Fiber Patch Cable with LC Connectors, 9/125um, OD-5mm, Direct Burial LC-LC
RiteAV - 4 Core Industrial TPU LC to LC Outdoor Armored Fiber Optic Cable, 4 Strands OS2 Single Mode Fiber Patch Cable with LC Connectors, 9/125um, OD-5mm, Direct Burial LC-LC
Regular price
$399.98 USD
Regular price
Sale price
$399.98 USD
Unit price
/
per
4 Fibers OS2 Single Mode LC Industrial Armored TPU Fiber Optic Patch Cable
Connector Type | LC UPC to LC UPC |
Fiber Mode | OS2 9/125μm |
Fiber Count | 4 Fibers |
Fiber Grade | G.657.A2 |
Cable Jacket | TPU (Thermoplastic Polyurethane) |
Trunk Diameter | 5.0mm |
Breakout Diameter | 3.0mm |
Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
Tensile Load | 200/600N (Long/Short Term) |
Wavelength | 1310/1550nm |
Insertion Loss | ≤0.15dB |
Return Loss | ≥55dB |
Fiber Cords Structure | Combination of Metal Steel Armor and Glass Fiber Yarns |
Crush Resistance | 1000/3000 N/100mm (Long/Short Term) |
Operating Temperature | -40~80°C |
Storage Temperature | -40~80°C |
YUTIANHOME FIBER, a trusted and leading provider of comprehensive communication and high-speed network system solutions for customers in the networking, data center, and telecom industries.
For Business customers, our factory also accept custom orders and can manufacture products according to your specifications
Industrial OM3 Cables | (Separate ends) Armored OM3 Cables | Standard Armored OM3 Cables | Uniboot Armored OM3 Cables | |
---|---|---|---|---|
Cable Diameter | 5.0mm | 3.0mm | 3.0mm | 3.0mm |
Fiber Count | Duplex / 2 Fibers | Duplex / 2 Fibers | Duplex / 2 Fibers | Duplex / 2 Fibers |
Fiber Grade | Bend Insensitive | Bend Insensitive | Bend Insensitive | Bend Insensitive |
Jacket | TPU | LSZH | LSZH | LSZH |
Armored | ✓ | ✓ | ✓ | ✓ |
Available Length | 10-300m | 1-300m | 1-300m | 1-300m |
Operating Temperature | -40 to 80°C (-40 to 176℉) | -25~70°C (-13 to 158℉) | -25~70°C (-13 to 158℉) | -25~70°C (-13 to 158℉) |
Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Indoor or underground with conduit | Indoor or underground with conduit |
Industrial OS2 Cables | 3.0mm Armored OS2 Cables | 4 Fibers Industrial OS2 Cables | |
---|---|---|---|
Cable Diameter | 5.0mm | 3.0mm | 5.0mm |
Fiber Count | 2 Fibers | 2 Fibers | 4 Fibers |
Fiber Grade | G.657.A2 | G.657.A2 | G.657.A2 |
Jacket | TPU | LSZH | TPU |
Armored | ✓ | ✓ | ✓ |
Available Length | 10m-10kilometer | 1m-10kilometer | 50-150m |
Operating Temperature | -40 to 80°C (-40 to 176℉) | -25~70°C (-13 to 158℉) | -40 to 80°C (-40 to 176℉) |
Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Outdoor, Harsh Environment |
Fiber Optic Cable Pulling Eye Kit | Fiber Optic Cable Pulling Eye Kit | |
---|---|---|
Color | Yellow | Orange |
Length | 3 Meters | 3 Meters |
Strength member | PVC jacketed Kevlar | PVC jacketed Kevlar |
Rotating Clip | Stainless Steel | Stainless Steel |
Vinyl Electrical Tape | included | included |
- 4 Core Single Mode LC Industrial Armored TPU Fiber Optic Patch Cable: Industrial TPU Jacket features strong tensile strength, high abrasion resistance, water proof, high and low-temperature resistance, uv-resistant, bending resistant. Suitable for Various Harsh Installation Environments such as roads & snowfields & industrial fields & construction sites.
- Ideal for both indoor and outdoor applications. Can be installed overhead, buried directly in the ground, or routed through conduits.
- 4 Core Armored Fiber LC: Combination of Metal Steel Armor and Glass Fiber Yarns Provides Dual Physical Protection Against Rodents
- 4 Strands Single Mode Fiber Cable pre-terminated: Simple to install, pre-terminated, just plug and go
- Max. 600N Tensile Strength and Max. 3000N Crush Strength
Brand | RiteAV |
Connector Type | Lc to Lc |
Cable Type | Fiber Optic |
Compatible Devices | Television, Server |
Special Feature | outdoor fiber armored 4 core |
